Baoding Lianchi Tengbo Machinery Equipment Factory

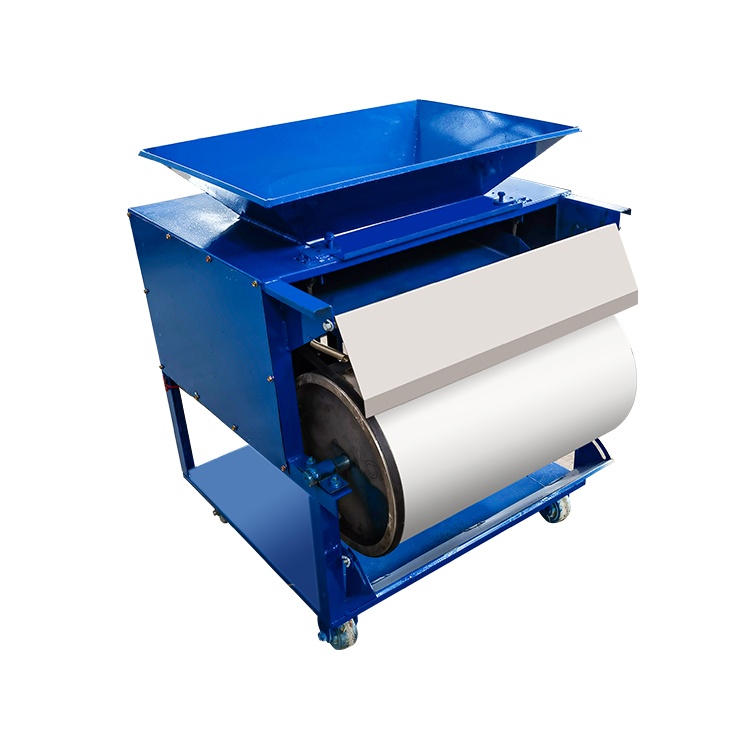

Single-roller drum magnetic separator, also known as B-type new iron absorber, aluminum pin iron pin separator, aluminum pin iron separator, copper rice iron absorber, iron powder magnetic separator, is developed by Tengbo Machinery Factory It is used to sort aluminum pins, aluminum powder, aluminum chips, aluminum powder, aluminum shavings, copper powder, copper rice, plastic packing belt, iron slag, iron sand, stainless steel, steel slag, zinc powder, aluminum ash, iron in garbage Chips, iron slag, and iron powder are reliable products for non-ferrous metal manufacturers.
This machine belongs to the permanent magnetic semi-magnetic drum type magnetic separator, which can continuously separate the magnetic and non-magnetic materials, and the purification rate can reach more than 98%. It is an ideal product for swarf recycling stations, copper rod factories, foundries, aluminum factories, scrap metal recycling factories, steel factories and individual iron selection and impurity removal factories. Magnetic separators are widely used in iron absorption of non-ferrous metals, iron separation of copper rice, iron removal of aluminum pins, iron separation of aluminum shavings, abrasive abrasives, refractory materials, non-metallic mineral processing, carbon black, grain, feed, chemical raw materials and other industries.

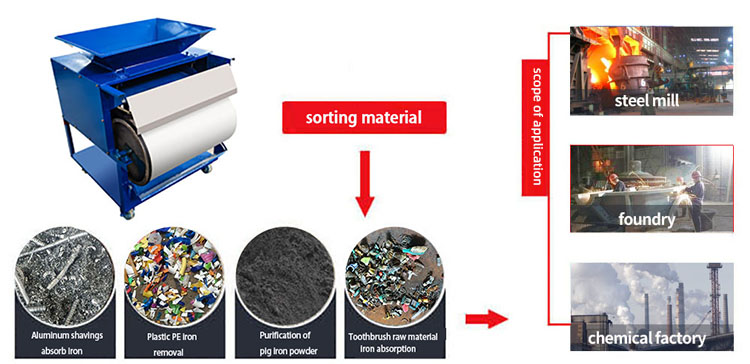

Applicable materials
Materials that can be separated: aluminum pins, aluminum chips, aluminum powder, aluminum shavings, electronic pins, copper powder, copper rice and other metal scraps for iron and iron removal, abrasives, refractory materials, non-metallic mineral processing, carbon black , food, feed, chemical raw materials, etc.
Product advantages
1. Semi-magnetic drum
Built-in semi-magnetic drum, the outer drum rotates, the inner magnet does not move, and the sorting efficiency is good.
2. Even feeding
The feeding adopts a large feeding hopper, which is convenient for feeding and improves efficiency
3. Sorting is clean
Non-magnetic materials come out from the front of the drum, and magnetic materials come out from the back of the drum
Product description

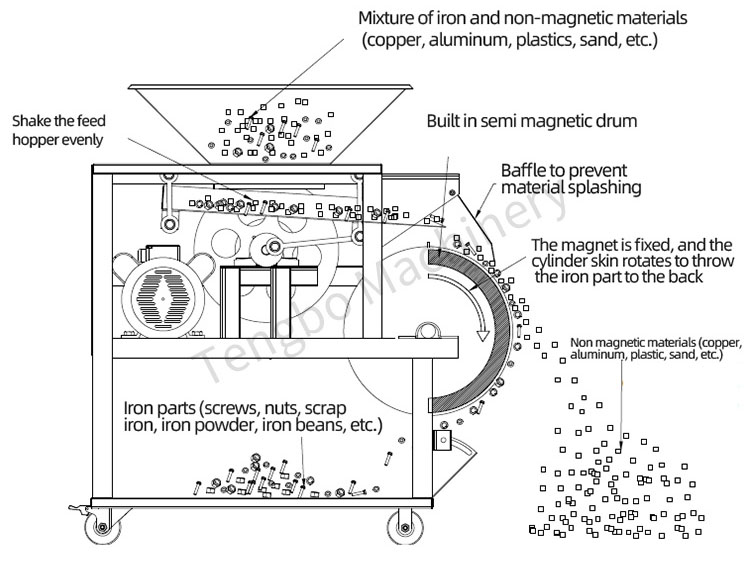

The material is evenly fed to the upper magnetic field area of the rotating semi-magnetic drum through the mechanical swing feeding device, and the magnetic material is adsorbed on the drum surface and rotates with the drum. Because magnetic materials and non-magnetic materials have different magnetic force in the magnetic field, magnetic particles are adsorbed on the surface of the drum by magnetic force in the magnetic field, and are thrown off when they are brought to the non-magnetic field area. Due to the different magnetic force, non-magnetic and weak magnetic particles have different throwing trajectories. The stronger the magnetism is, the closer it is to the drum when it is thrown away. The surrounding direction adopts alternating magnetic field and swings with a certain angle and period, so as to achieve the function of separation.
Requirements for sorting materials
If the iron content is less than 50%, the iron can be thrown into the magnetic material area at the back of the machine, and most non-magnetic materials can be dropped in the front, which can be bagged or packed reasonably. Sorting products require sorting of waste products from granular, dry powder, fluid materials, or metal chips, lathes, grinders and other products. Those with a diameter of more than 50mm upward cannot be separated and need to be selected manually to avoid damaging the magnetic drum.
Delivery picture
1. How about the quality of your products?
Answer: Our products are produced in strict accordance with national and international standards, and we will test each machine before delivery.
2. How about the warranty?
A: All of our products are guaranteed for one year. You can bring an extra set of wearing parts to facilitate your replacement.
3. What is the delivery time?
Answer: According to the specific data provided by the customer, the delivery time of our customized equipment is 15-30 days.
4. Service and payment terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before ex-factory delivery, which is international trade practice;
Finished product pictures will be provided to customers before delivery.
