Baoding Lianchi Tengbo Machinery Equipment Factory

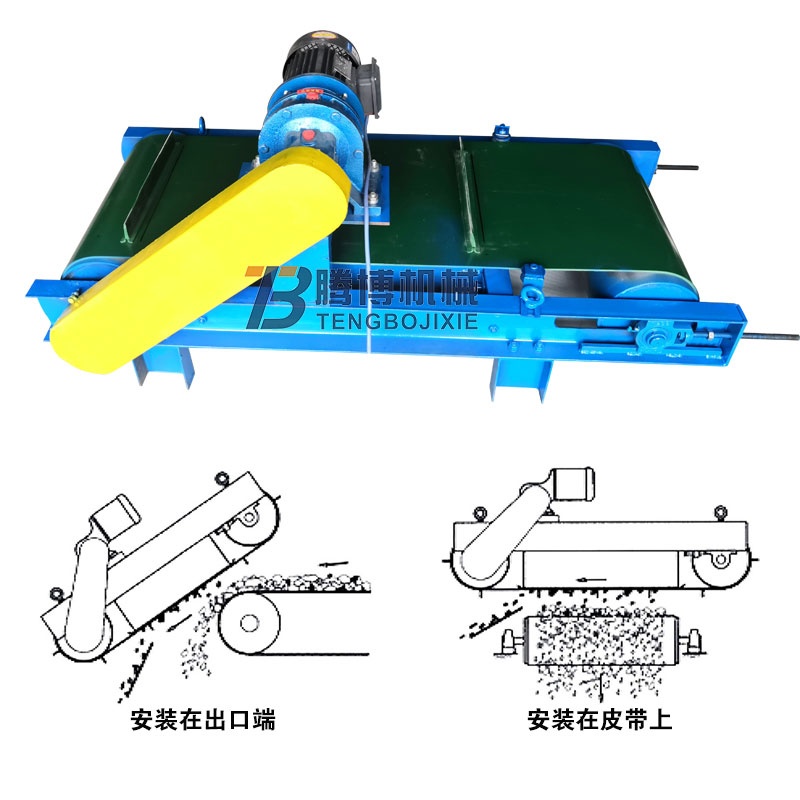

The series of permanent magnet self-unloading iron separators are specially used for iron separation in metallurgical slag, iron in direct reduction iron plant, iron in stewed slag workshop, iron in foundry workshop, etc. Armored belt with unique design can prevent sharp ferromagnetic debris from damaging the belt. The magnetic system uses rare earth NdFeB permanent magnet material as the magnetic source, and the magnetic performance is stable and reliable; it has high magnetic field strength, large gradient, and strong suction. Powerful, no need for electric excitation, energy saving, automatic iron unloading, convenient operation. The belt has an automatic deviation correction function, which is suitable for working under harsh environmental conditions and can run without failure for a long time.
Applicable materials
Product advantages
1. Precise design, stable operation
The permanent magnet self-unloading iron remover is based on the suspended permanent magnet iron remover with increased size and additional components such as drive motors, conveyor belts, frames, magnetic drums, idlers, etc., and is used in conjunction with various conveyor belts.
2. Automatic operation, saving manpower
When the crushed material conveyed by the belt conveyor passes through the iron remover installed on the tail bracket, the iron and other magnetic materials in the material are attracted, and the iron and other magnetic materials are transported by the conveyor belt to the electric drum and fall to achieve the purpose of automatic iron removal .
3. Flexible operation and convenient maintenance
Automatic unloading of iron, easy maintenance, and long-term trouble-free operation.

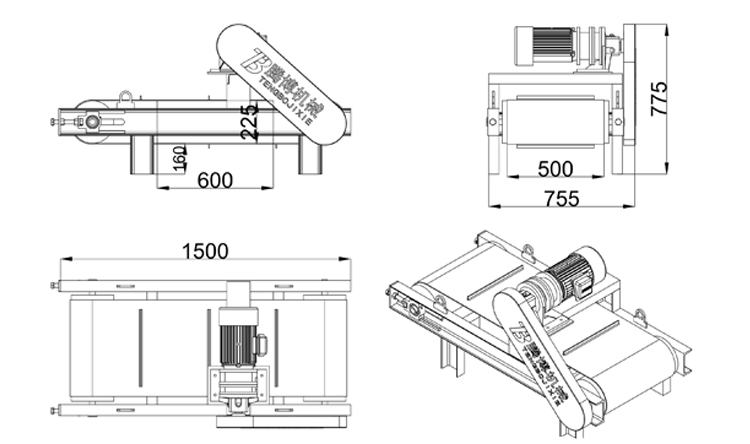

Product Dimensions

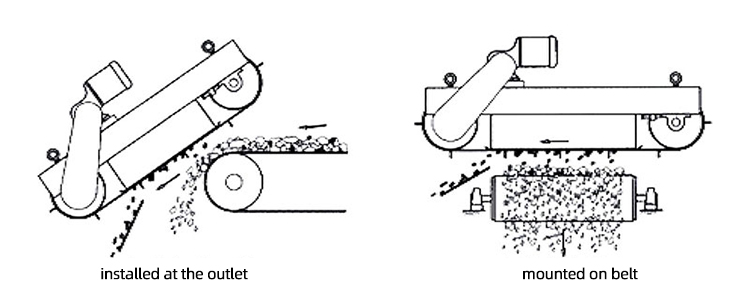

Product Diagram
working principle
When the granular material passes directly under the permanent magnet self-unloading iron remover, about 0.1-0.36 kg of ferromagnetic impurities mixed in the material are sucked up. Since the belt on the iron remover is constantly running, when it is adsorbed on it When the ferromagnetic material passes through the non-magnetic area, it will be scraped off by the iron parts on the belt and thrown into the iron collecting box, so as to achieve the purpose of continuous and automatic iron removal. The iron remover is a device that generates a strong magnetic field. It can clean up the ferromagnetic materials mixed in the materials and ensure the safe and normal operation of the crushers and grinders in the conveying system. It is mainly suitable for conveyor belt width and general belt width. 400mm, 500mm, 600mm, 700mm, 800mm.
FAQ
Q1: Are you a factory or trading company?
A1: We are a factory.
Q2: Where have your products been exported before?
A2: Our products have been sold to Southeast Asia, Africa, South America, Middle East and other places
Q3: What is the iron removal rate of your magnetic separator?
A3: More than 98%
Q4: What is your delivery date?
A4: 15-25 days
Q5: How do you make our business a long-term cooperative relationship?
A5: We guarantee the quality and price advantages of our products to ensure that customers can benefit more. We regard every customer as our friend, sincerely do business and make friends with every customer.
When the granular material passes directly under the permanent magnet self-unloading iron remover, about 0.1-0.36 kg of ferromagnetic impurities mixed in the material are sucked up. Since the belt on the iron remover is constantly running, when it is adsorbed on it When the ferromagnetic material passes through the non-magnetic area, it will be scraped off by the iron parts on the belt and thrown into the iron collecting box, so as to achieve the purpose of continuous and automatic iron removal. The iron remover is a device that generates a strong magnetic field. It can clean up the ferromagnetic materials mixed in the materials and ensure the safe and normal operation of the crushers and grinders in the conveying system. It is mainly suitable for conveyor belt width and general belt width. 400mm, 500mm, 600mm, 700mm, 800mm.
